Detalhes dos produtos

Casa produtos

Sistema de ensaio de medidores estacionários

YC-1893D Electric Meter Calibration System for Utilities and Manufacturers

Nome da marca:	GENY
Número do modelo:	YC1893D
MOQ:	1
preço:	negotiate rates
Condições de pagamento:	T/t, l/c, d/p, t/t
Capacidade de abastecimento:	5 conjuntos / 1 meses

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

CHINA

Certificação:

ISO, CE

Documento:

Three-phase meter test syst...em.pdf

Fonte de energia:

3P4W 3×380V±10%, 50Hz±2Hz

Faixa de tensão de saída (fase-neutra):

3 × 40V a 450V

Faixa de ajuste de frequência:

45Hz a 65Hz

Uso:

calibração do medidor da energia, pesquisa do laboratório

Detalhes da embalagem:

Casos de compensado

Habilidade da fonte:

5 conjuntos / 1 meses

Destacar:

electric meter calibration system

stationary meter test system for utilities

YC-1893D meter calibration system

Descrição do produto

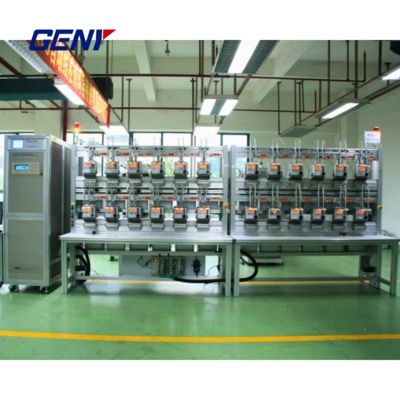

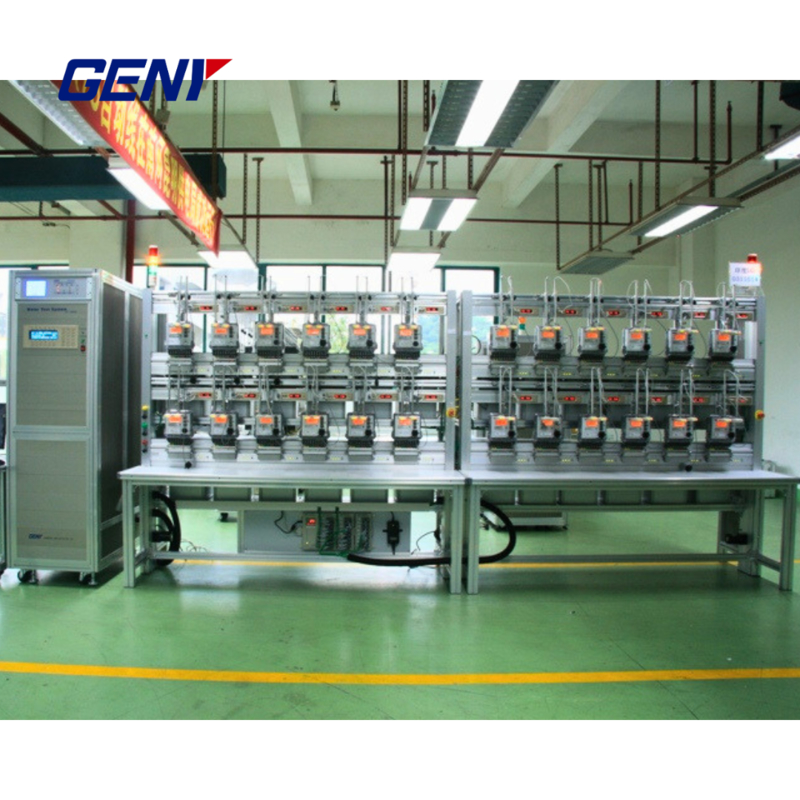

YC-1893D Electric Meter Calibration System for Utilities and Manufacturers

The YC-1893D Series Three-Phase Electricity Meter Calibration Device is a high-performance solution designed for accurate testing and calibration of three-phase electricity meters. It is widely used by power utilities, electricity meter manufacturers, metrology labs, quality inspection departments, and industrial and mining enterprises.

Supported Meter Types

Multifunctional electricity meters
Electronic and mechanical meters
Electromechanical integrated meters
Three-phase multi-user meters

Engineered for precision and reliability, the YC-1893D is ideal for ensuring meter accuracy and compliance with industry standards.

Technical Specifications

Parameter	Description
Power Supply	3P4W 3×380V±10%, 50Hz±2Hz
Ambient Temperature	-10℃ to +40℃
Ambient Humidity	35% to 95%
Output Voltage Range (Phase-to-Neutral)	3×40V to 450V
Output Voltage Power	3×1000VA (Maximum)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3%
Output Current Range	3×1mA to 120A (Maximum up to 230A upon customer request)
Output Current Power	3×2000VA (Maximum)
Current Resolution	0.01%
Current Stability	0.02%/120s
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Maximum Continuous 20-Minute Current	120A
Phase Adjustment Range	0° to 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz to 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s
