Banco de ensaio do medidor estacionário
Created with Pixso.

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Nome da marca: GENY
Número do modelo: YC1893D
MOQ: 1 pcs
Preço: Negociável
Condições de pagamento: L/c, t/t, d/p
Capacidade de abastecimento: 30 PCs por mês
Informações detalhadas
Lugar de origem:
CHINA
Certificação:
ISO, CE
Teste a saída atual:
3 × (0,3mA 20A)
Poder da saída atual:
3 × 1500VA
Potência da tensão de saída:
3 × 1000VA
Faixa de frequência:
45 Hz 65 Hz
Ajuste da precisão:
Melhor que 0,05% no valor do intervalo final
Estabilidade:
Melhor que 0,005%/h (tempo de integração 150 s)
Detalhes da embalagem:
Caso de compensado
Habilidade da fonte:
30 PCs por mês
Destacar:

24-Meter Positions Energy Meter Test Bench

,

60° Bevel Structure Stationary Meter Test Bench

,

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

Descrição do produto

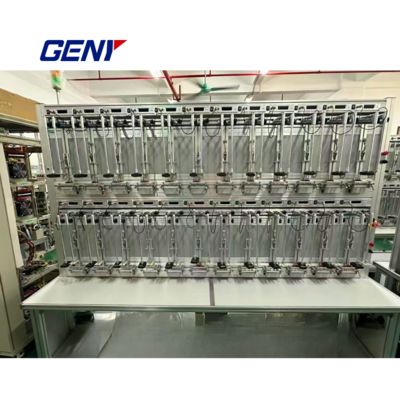

Customizable Three-Phase Energy Meter Verification Bench Customized Part 1. Automatic Suspension Test Rack Three-phase 24-meter positions distributed on two sets of meter racks Each rack has two rows arranged on one side with 6 positions per row Equipped with rotatable mechanism Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane Complete protection against direct and indirect electric shocks Three-color indicator light on top of each
