Sistema de ensaio de medidores estacionários
Created with Pixso.

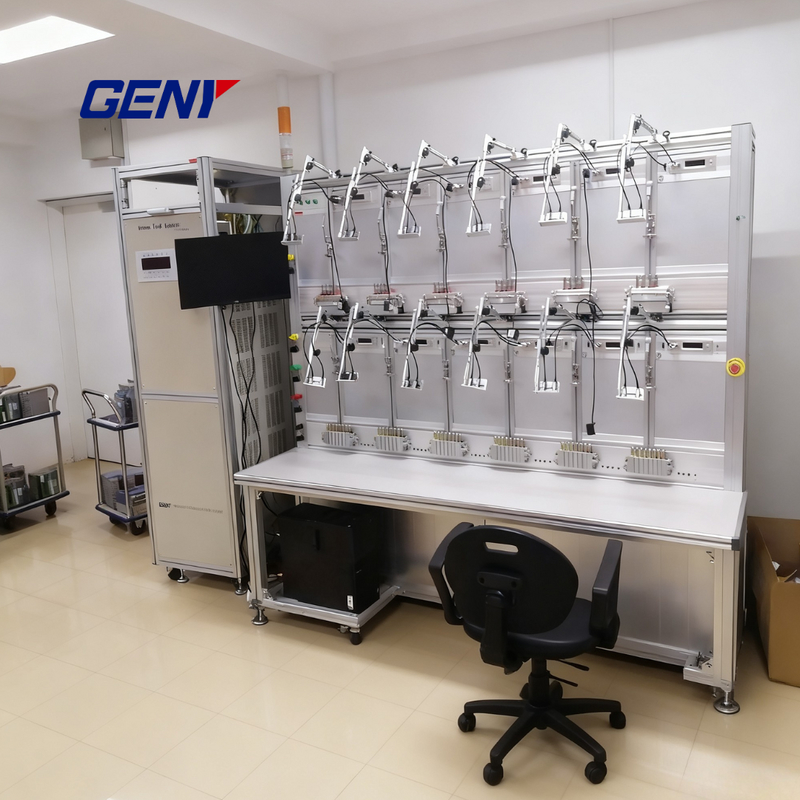

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

Nome da marca: GENY
Número do modelo: YC1893D/YC1891D
MOQ: 1 peça
preço: Negociável
Condições de pagamento: L/c, t/t, d/p
Capacidade de abastecimento: 100/ano
Informações detalhadas
Lugar de origem:
China
Certificação:
ISO, CE
Tensão de teste (fase neutra):
3 × (24 V - 500 V) ou personalizado
Corrente de ensaio::
3 × (1 mA - 120 A)
Ajuste da precisão:
Melhor que 0,05% no valor do intervalo final
Estabilidade:
Melhor que 0,005%/h (tempo de integração 150s)
Fator de distorção:
Melhor que 0,3% para carga de resistência linear
Detalhes da embalagem:
Caixa de madeira compensada
Habilidade da fonte:
100/ano
Destacar:

Single-phase electric energy meter tester

,

Stationary meter test system accurate

,

YC-1891D-24 energy meter tester

Descrição do produto
YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate
Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.

Specifications
Power Source
Voltage Output
  • Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customized
  • Output Power: 3 × 100 VA
  • Resolution: < 0.01% of full-scale range
  • Setting Accuracy: < 0.05% at final range value
  • Stability: < 0.005%/h (integration time 150 s)
  • Load Regulation (0-max): < 0.01%
  • Distortion Factor: < 0.3% (linear resistive load)
  • Harmonics: Programmable 2nd to 21st order
Current Output
  • Test Current: 3 × (1 mA - 120 A)
  • Output Power: 3 × 150 VA
  • Resolution: < 0.01% of full-scale range
  • Setting Accuracy: < 0.05% at final range value
  • Stability: < 0.005%/h (integration time 150 s)
  • Load Regulation (0-max): < 0.01%
  • Distortion Factor: < 0.3% (linear resistive load)
  • Harmonics: Programmable 2nd to 21st order
Phase Angle
  • Range: 0° - 360°
  • Resolution: 0.01°
  • Accuracy: ±0.1°
Frequency
  • Range: 45 Hz - 65 Hz
  • Resolution: 0.01 Hz
Key Features & Benefits
  • High-precision measurement with accuracy up to ±0.01%
  • Programmable harmonics for flexible testing (2nd-21st order)
  • Stable operation under wide temperature and humidity ranges
  • User-customizable voltage and current output ranges
  • Built-in surge protection and advanced grounding system
  • Ideal for energy meter calibration, power testing, and R&D applications
