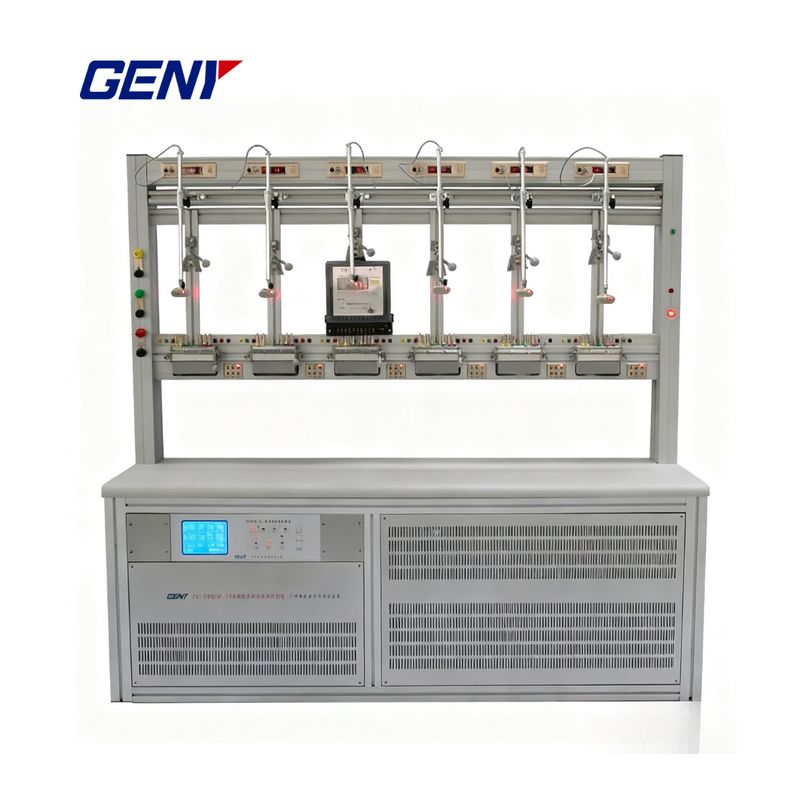

Advanced Meter Test Equipment for Precision Single-Phase Energy Meter Calibration

Nome da marca:	GENY
Número do modelo:	YC1891D
MOQ:	1 peça
preço:	Negociável
Condições de pagamento:	L/C,T/T,D/P
Capacidade de abastecimento:	100/ano

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

China

Certificação:

ISO, CE

Documento:

Geny product brochure 2020.pdf

Precisão:

0,05

Voltagem de saída de ensaio:

24V - 288V ou personalizado

Teste a saída atual:

1mA - 100A ou personalizado, Max.200A

Resolução:

Melhor que 0,01% do valor em escala total do intervalo

Ajuste da precisão:

Melhor que 0,05% no valor do intervalo final

Estabilidade:

Melhor que 0,005%/h (tempo de integração 150 s)

Detalhes da embalagem:

caixa de madeira compensada

Habilidade da fonte:

100/ano

Destacar:

single-phase energy meter tester

precision meter calibration equipment

energy meter test equipment with warranty

Descrição do produto

Advanced Meter Test Equipment for Precision Single-Phase Energy Meter Calibration

Our high-performance meter test equipment is engineered for precise, reliable testing of 1P2W single-phase energy meters. Designed for laboratories, utilities, and meter manufacturers, this system supports active power, reactive power, and cross-connected reactive power testing with exceptional accuracy.

Key Features

Versatile Meter Compatibility

Supports testing of 1P2W single-phase meters
Suitable for mechanical meters, electromechanical meters, and electronic meters
Capable of automatic, semi-automatic, and manual testing modes
Tests meters with different meter constants simultaneously

Advanced Testing Capabilities

Active / Reactive / Cross-Connected Reactive Power testing
Starting test and creeping test for precise performance verification
MSVT function for testing meters with I-P closed links between voltage and current circuits
Built-in current output switch for calibrating 2-element meters
Optional neutral current test and tilt impact test

High Accuracy & Stability

Power stability up to 10 ppm
Accuracy class 0.1 and 0.05
Reliable timing error test, harmonic analysis, and influence test (voltage, frequency, harmonics)

Enhanced Efficiency & Safety

Automatic rotor mark positioning for mechanical meter discs
Scanning head swing mechanism for simplified operation
Protection against overload, short-circuit voltage, and open current circuits
Aluminum-alloy construction: lightweight, robust, and corrosion-resistant

Flexible Software & Connectivity

User-friendly testing software compatible with Windows 2000 / XP / 7 / 8 / 10
Includes modules for error testing, harmonic testing, demand testing, and influence testing
RS232 and Ethernet communication ports available at each meter position
