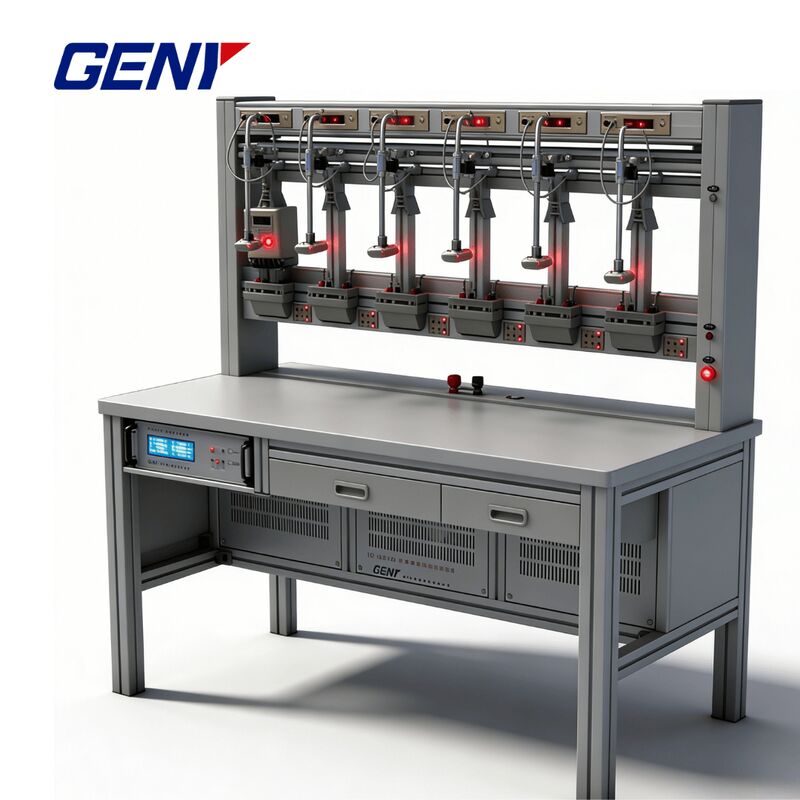

0.01 Accuracy Three-Phase Meter Test Bench

Name: 0.01 Accuracy Three-Phase Meter Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Nome da marca:	GENY
Número do modelo:	YC1893D
MOQ:	1 peça
preço:	Negociável
Condições de pagamento:	L/C,T/T,D/P
Capacidade de abastecimento:	100/ano

Informações detalhadas

Lugar de origem:

CHINA

Certificação:

ISO, CE

Documento:

Classe de Precisão:

0,01

Posições simultâneas do medidor de referência:

3/6 (máximo 12 mediante solicitação)

Faixa de mudança de fase:

0 ° - 360 °

Temperatura operacional:

20 °C ±5 °C

Umidade operacional:

50% UR ±15% UR

Detalhes da embalagem:

caixa de madeira compensada

Habilidade da fonte:

100/ano

Destacar:

Descrição do produto

0.01 Accuracy Three-Phase Meter Test Bench

Special Functions

Forward and reverse active energy testing
Forward and reverse reactive energy error testing
SW-5D bridge wiring method for basic error testing of programmable energy meters
Communication testing, remote meter reading, and computer time synchronization
Meter constant (pulse constant) verification, including:
- Pulse counting method
- Time measurement method
- Stopwatch method
Time-of-use (TOU) testing, maximum demand testing, and display value error verification
Influence tests, including:
- Voltage unbalance test
- High-order harmonic test
Disturbance tests, including:
- Voltage dip test
- Short-duration power interruption test

General Functions

Measurement functions: Active power, reactive power, active energy, reactive energy, starting test, and creep test for three-phase energy meters
Accuracy evaluation: Basic error, mean error, standard deviation, and 24-hour stability test for high-accuracy calibration
Voltage and current output: Adjustable frequency and harmonic generation (1st-64th order), supporting phase sequence influence testing
Multi-meter calibration: Simultaneous calibration of energy meters with different accuracy classes and phase sequences; automatic identification of meter constants
Safety protection: Current open-circuit protection and voltage short-circuit protection to ensure reliable calibration operation
Operating modes: Automatic and manual calibration modes
Data processing: Automatic error calculation, data processing, data storage, and PC-based online output
Interfaces: Optical and pulse input channels, flexible configuration, supporting multi-channel meter input
Power source system: Modular high-power three-phase source, special power design with high efficiency and low loss
Standards compliance: Fully compliant with IEC 62053, IEC 597, and R46 requirements for energy meter calibration systems
Mechanical structure: Robust, practical, and professional industrial design for laboratory applications
